Feature Group#

A feature group in a Feature Store is a collection of related features that are often used together in machine learning models. Feature groups serve as an organizational unit in the Feature Store to manage, version, and share features across different machine learning projects. By organizing features into groups, data scientists and machine learning engineers can efficiently discover, reuse, and collaborate on features. Feature groups reduce the redundant work and ensure consistency in feature engineering.

_images/feature_group.png

In feature group, three key types play crucial roles:

  • Primary Keys: These keys uniquely identify individual records in the feature group. They ensure the uniqueness and integrity of each entry, allowing for efficient retrieval and modification of specific data points.

  • Partition Keys: These keys assist in distributing and organizing data across different partitions in the feature group. They enable efficient data retrieval by logically grouping related information, optimizing query performance, and minimizing resource utilization.

  • Event Timestamp Keys: These keys capture the temporal aspect of the data by indicating the time or timestamp associated with a specific event or entry in the feature group. They facilitate time-based querying, trend analysis, and time-series operations.

Important

By default, special characters such as spaces and any of the characters ,;{}()nt= are not supported in feature group column names.

Define#

In an ADS Feature Store module, you can use the Python API or a .yaml file to define a feature group.

The following example defines a feature group and gives it a name. A FeatureGroup instance is created.

  • Python
  • YAML
from ads.feature_store.feature_group import FeatureGroup
# Dictionary containing arguments for the feature group for the transformation function.
transformation_kwargs = {}

feature_group_flights = (
    FeatureGroup()
    .with_feature_store_id(feature_store.id)
    .with_primary_keys(["col1"])
    .with_partition_keys(["col1", "col2"])
    .with_name("flights_feature_group")
    .with_entity_id("<entity_id>")
    .with_compartment_id("ocid1.compartment..<unique_id>")
    .with_schema_details_from_dataframe(dataframe)
    .with_transformation_kwargs(transformation_kwargs)
)

from ads.feature_store.feature_group import FeatureGroup

yaml_string = """
kind: FeatureGroup
spec:
  compartmentId: ocid1.compartment..<unique_id>
  entityId: <entity_id>
  featureStoreId: <feature_store_id>
  id: <feature_group_id>
  inputFeatureDetails:
  - featureType: STRING
    name: col1
    orderNumber: 1
  - featureType: STRING
    name: col2
    orderNumber: 2
  name: <feature_group_name>
  primaryKeys:
    items:
    - name: col1
  partitionKeys:
    items:
    - name: col1
  statisticsConfig:
    isEnabled: true
type: featureGroup
"""

feature_group = FeatureGroup.from_yaml(yaml_string)

Create#

Use the create() method of the FeatureGroup instance to create a feature group.

Important

This method doesn’t persist any metadata or feature data in the Feature Store. To persist the feature group and save feature data, including the metadata in the Feature Store, use the materialise() method with a dataframe.

# Create a feature group
feature_group.create()

Load#

Use the from_id() method from the FeatureGroup class to load an existing feature group by specifying its OCID. A FeatureGroup instance is returned.

from ads.feature_store.feature_group import FeatureGroup

feature_group = FeatureGroup.from_id("<unique_id>")

Materialise#

Use the materialise() -> FeatureGroupJob method of the FeatureGroup instance to load the data to feature group. To persist the feature group and save feature group data, including the metadata in the Feature Store, use materialise().

The .materialise() method has the following parameters:

  • input_dataframe: Union[DataFrame, pd.DataFrame]. Spark dataframe or Pandas dataframe.

  • from_timestamp: str(Optional). From timestamp of the feature group.

  • to_timestamp: str(Optional). To timestamp of the feature group.

  • feature_option_details: FeatureOptionDetails(Optional). Feature option details for the materialise operation.

    • write_config_details: (merge_schema: bool, overwrite_schema: bool). Write configuration details for the feature option details.

    • read_config_details: (version_as_of: int, timestamp_as_of: datetime). Read configuration details for the feature option details.

from ads.feature_store.feature_group_job import FeatureGroupJob

feature_group_job: FeatureGroupJob = feature_group.materialise(dataframe)

See also

For more information, see Feature Group Job.

See also

See Data Types for the types supported by Feature Store.

Materialise Stream#

You can call the materialise_stream() -> FeatureGroupJob method of the FeatureGroup instance to load the streaming data to the feature group. To persist the feature group and save the feature group data along the metadata in the Feature Store, call the materialise_stream()

The .materialise_stream() method takes the following parameter:

  • input_dataframe: The features in Streaming Dataframe to be saved.

  • query_name: It is possible to optionally specify a name for the query to make it easier to recognize in the Spark UI. It defaults to None.

  • ingestion_mode: Specifies how the data of a streaming DataFrame or dataset is written to a streaming sink.

    • append: Only the new rows in the streaming DataFrame or dataset are written to the sink. If the query doesn’t contain aggregations, it is equivalent to the append mode. It defaults to "append".

    • complete: All the rows in the streaming DataFrame or dataset are written to the sink every time there is an update.

    • update: Only the rows that were updated in the streaming DataFrame or dataset are written to the sink every time there is an update.

  • await_termination: Waits for the ending of this query, either by query.stop() or by an exception. If the query has ended with an exception, then the exception is raised. If a timeout is set, it returns whether the query has terminated or not in the timeout seconds. It defaults to False.

  • timeout: Only relevant in combination with await_termination=True.

    • Defaults to None.

  • checkpoint_dir: The checkpoint directory location. It’s used to as a reference to where to resume the streaming job from. It defaults to None.

  • write_options: Extra write options for Spark as key-value pairs.

    • Defaults to {}.

from ads.feature_store.feature_group import FeatureGroup

from ads.feature_store.common.spark_session_singleton import SparkSessionSingleton
from pyspark.sql.types import StructType

# Get the spark session managed by the feature store
spark = SparkSessionSingleton(metastore_id=metastore_id).get_spark_session()

df = spark.readStream \
  .option("sep", ",") \
  .option("header", True) \
  .csv(f"{stream_data_dir}/")

feature_group = FeatureGroup.from_id("<unique_id>")

query = fg.materialise_stream(input_dataframe=df, checkpoint_dir=f"{stream_data_dir}chec")

query.awaitTermination()

See also

Refer Data Types supported by feature store

See also

See Online feature store (Experimental) for the documentation on online feature store.

Get nearest neighbours#

You can call the get_nearest_neighbours() -> NearestNeighbour method of the FeatureGroup instance to find the nearest neighbours for a feature field

The .get_nearest_neighbours() method takes the following parameter:

  • field: Indicates which fields to fetch.

  • k_neighbors: Number of neighbours to fetch

  • embedding_vector: Embedding vector. Usually a dense vector

  • max_candidate_pool: Indicates the maximum candidate pool size

See also

Refer Data Types supported by feature store

See also

See Online feature store (Experimental) for the documentation on online feature store.

Get serving vector#

You can call the get_serving_vector() method of the FeatureGroup instance to find the serving vector

The .get_serving_vector() method takes the following parameter:

  • primary_key_vector: Primary key vector for feature group

See also

Refer Data Types supported by Feature Store.

Delete#

Use the .delete() method on the FeatureGroup instance to delete a feature group. A feature group can only be deleted when its associated entities are all deleted.

feature_group.delete()

Select#

Use the select() method of the FeatureGroup instance to return the Query interface. The Query interface is used to join and filter on the feature group.

Feature Store provides an API similar to Pandas to join feature groups together, and to select features from different feature groups. Write the query by selecting all, or a subset, of the features from a feature group, and then join them with all, or a subset, of the features of another feature group.

# Select all columns of feature group
feature_group.select().show()

# Select subset columns of feature group
feature_group.select(['col1', 'col2']).show()

# Filter feature groups
feature_group.filter(feature_group.col1 == 0).show()


# Join feature groups
query = feature_group_a.select()\
              .join(feature_group_b.select(), left_on=['a_1'], right_on=['b_1'])\
              .join(feature_group_c.select(), left_on=['b_1'], right_on=['c_1'])
query.show(5)

Save Expectation Entity#

Using a FeatureGroup instance, you can save the expectation details using with_expectation_suite() with the following parameters:

  • expectation_suite: ExpectationSuite. The ExpectationSuite of the great expectation library.

  • expectation_type: ExpectationType. The type of expectation.

    • ExpectationType.STRICT: Fail the job if the expectation isn’t met.

    • ExpectationType.LENIENT: Pass the job even if the expectation isn’t met.

Note

Great Expectations is an open source Python-based library that validates, documents, and profiles data. It automates testing, which is essential for managing complex code bases.

_images/validation.png
from great_expectations.core import ExpectationSuite, ExpectationConfiguration
from ads.feature_store.common.enums import ExpectationType
from ads.feature_store.feature_group import FeatureGroup

feature_group = FeatureGroup.from_id("<unique_id>")

expectation_suite = ExpectationSuite(
    expectation_suite_name="expectation_suite_name"
)
expectation_suite.add_expectation(
    ExpectationConfiguration(
        expectation_type="expect_column_values_to_not_be_null",
        kwargs={"column": "<column>"},
    )

feature_group_resource = (
    FeatureGroup()
    .with_feature_store_id(feature_store.id)
    .with_primary_keys(["<key>"])
    .with_name("<name>")
    .with_entity_id(entity.id)
    .with_compartment_id(<compartment_id>)
    .with_schema_details_from_dataframe(<datframe>)
    .with_expectation_suite(
        expectation_suite=expectation_suite,
        expectation_type=ExpectationType.STRICT,
     )
)

Use the get_validation_output() method of the FeatureGroup instance to fetch validation results for a specific ingestion job. The get_validation_output() method has the following optional parameters:

  • job_id: string. The ID of the feature group job.

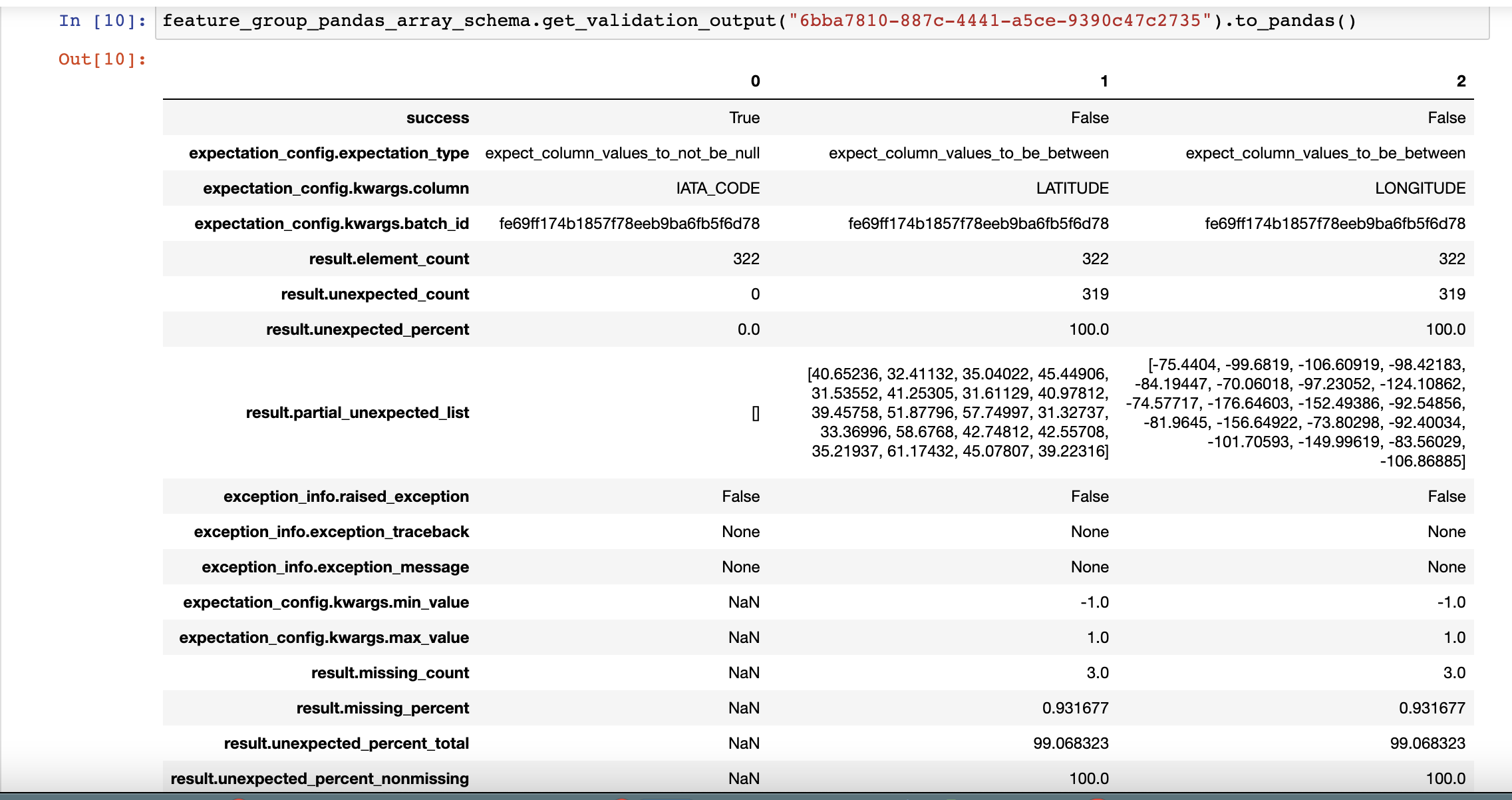

get_validation_output().to_pandas() Outputs the validation results for each expectation as a Pandas dataframe.

_images/validation_results.png

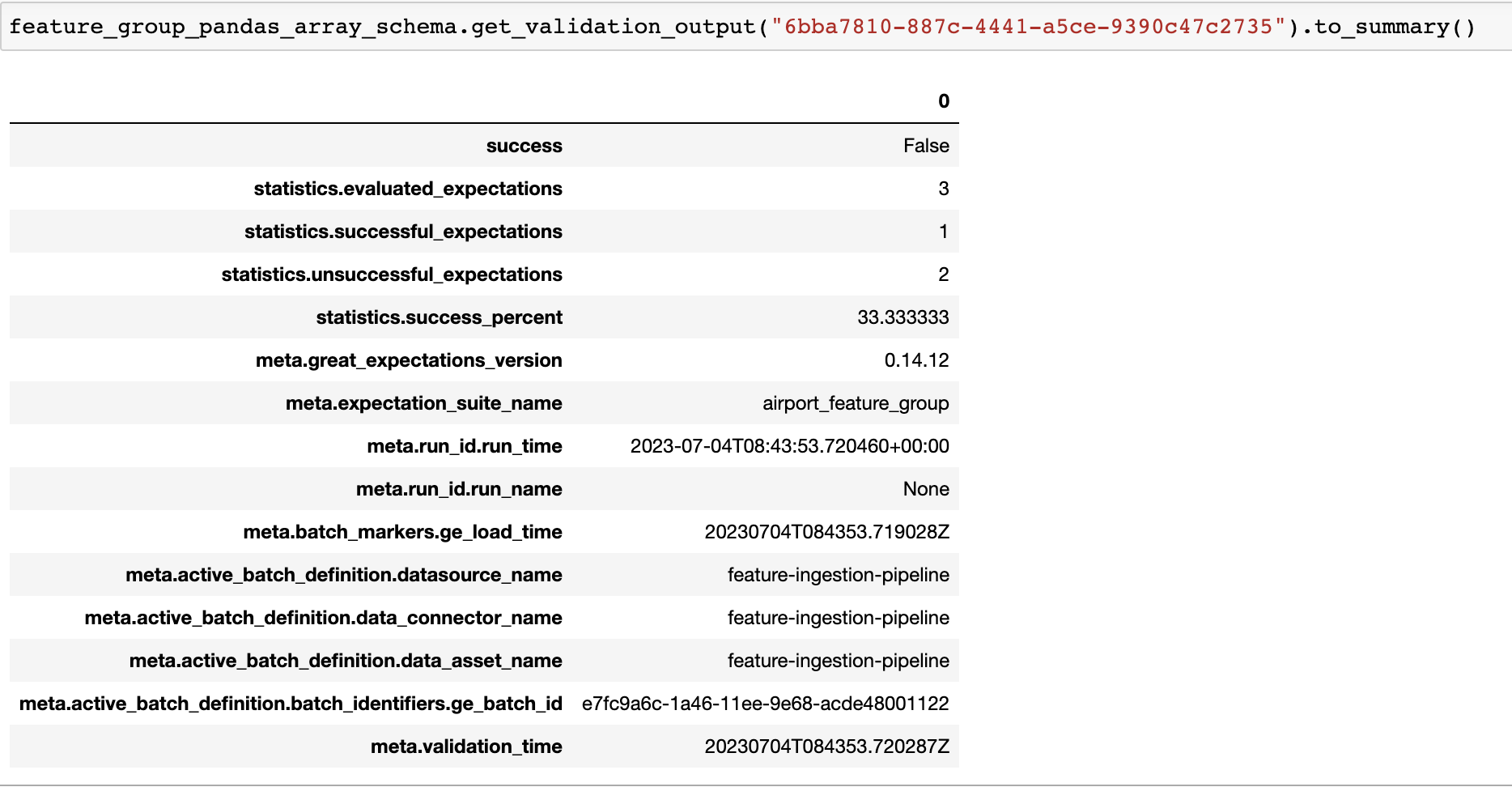

get_validation_output().to_summary() Outputs the overall summary of validation as a Pandas dataframe.

_images/validation_summary.png

See also

Feature Validation

Statistics Computation#

During the materialisation, Feature Store performs a computation of statistical metrics for all the features by default. Configure computation using a StatisticsConfig object, which is passed at the creation of a feature group, or which can be updated later.

# Define statistics configuration for selected features
from ads.feature_store.statistics_config import StatisticsConfig
stats_config = StatisticsConfig().with_is_enabled(True).with_columns(["column1", "column2"])

The following example uses computation with a feature group instance.

# Fetch stats results for a feature group job
from ads.feature_store.feature_group import FeatureGroup

feature_group_resource = (
  FeatureGroup()
  .with_feature_store_id(feature_store.id)
  .with_primary_keys(["<key>"])
  .with_name("<name>")
  .with_entity_id(entity.id)
  .with_compartment_id(<compartment_id>)
  .with_schema_details_from_dataframe(<dataframe>)
  .with_statistics_config(stats_config)

Use the get_statistics() method of the feature group to fetch metrics for a specific ingestion job.

The get_statistics() method has the following optional parameter:

  • job_id: string. The ID of feature the group job.

# Fetch statistics results for a feature group job
df = feature_group.get_statistics(job_id).to_pandas()
_images/stats_1.png
# Fetch and visualize statistics for a dataset job
df = feature_group.get_statistics(job_id).to_viz()
_images/feature_group_statistics_viz.png

See also

Statistics

Get Last Feature Group Job#

The feature group job is the processing instance of a feature group. Each feature group job includes validation and statistics results.

Using a FeatureGroup instance, you can get the last feature group job details using get_last_job().

# Fetch validation results for a feature group
feature_group_job = feature_group.get_last_job()

Get Features#

Use the get_features_df method of the FeatureGroup instance to fetch features in a feature group.

# Fetch features for a feature group
df = feature_group.get_features_df()

Filter#

Use the filter() method of the FeatureGroup instance to return the Query interface. The Query interface is used to join and filter on the feature group or a set of feature groups.

Feature store provides an API similar to Pandas to join feature groups together, and to select features from different feature groups. Write the query by selecting all or a subset of features from a feature group, and then join them with all or a subset of features of another feature group.

# Filter feature group
feature_group.filter(feature_group.col1 > 10).show()

# Filter feature group with get_feature
feature_group.filter(feature_group.get_feature("col1") > 10).show()

Get Feature#

Use the get_feature() method of the FeatureGroup instance to return the description of feature.

feature_group.get_feature("col1")

Preview#

Deprecated since version 1.0.3: Use as_of() instead.

Use the preview() method of the FeatureGroup instance to preview the feature group.

The .preview() method has the following optional parameters:

  • timestamp: date-time. The commit timestamp of the feature group.

  • version_number: int. The version number of the feature group.

  • row_count: int. Defaults to 10. The total number of rows to return.

# Preview feature group
df = feature_group.preview(row_count=50)

As Of#

Use the as_of() method of the FeatureGroup instance to get specified point in time and time traveled data.

The .as_of() method takes the following optional parameters:

  • commit_timestamp: date-time. The commit timestamp for the feature group.

  • version_number: int. The version number for the feature group.

# as_of feature group
df = feature_group.as_of(version_number=1)

Restore#

Use the restore() method of the FeatureGroup instance to restore the feature group to a particular version and timestamp.

The .restore() method takes the following optional parameters:

  • timestamp: date-time. The commit timestamp of the feature group.

  • version_number: int. The version number of the feature group.

# Restore the feature group to a particular version and timestamp
df = feature_group.restore(version_number=2)

Profile#

Use the profile() method of the FeatureGroup instance to profile the feature group.

# Profile feature group
df = feature_group.profile()

History#

Use the history() method of the FeatureGroup instance to show the history of the feature group.

# Show history of feature group
df = feature_group.history()

Visualize Lineage#

Use the show() method on the FeatureGroup instance to visualize the lineage of the feature group.

The show() method has the following optional parameter:

  • rankdir: (str, optional). It defaults to LR. The allowed values are TB or LR. This parameter is applicable only for graph mode, and it renders the direction of the graph as either top to bottom (TB) or left to right (LR).

feature_store.show()

The following is an example of the output:

_images/feature_group_lineage.png

Data Types#

The data is stored in a data type native to each store. Specifying with_schema_details_from_dataframe causes the Feature Store to automatically infer the data types from the dataframe. This option can also specify the data type explicitly.

Note

The following table shows the mapping when registering a Spark dataframe, or a Pandas dataframe. For Spark dataframes, all data types including those not specified in the following table, are mapped to the Offline Feature Type, COMPLEX.

Spark Type

Pandas Type

Offline Feature Type

Notes

BooleanType

bool

BOOLEAN

True or False

ByteType

uint8

INTEGER

8-bit integer

ShortType

int16, Int16

INTEGER

16-bit integer

IntegerType

int32

INTEGER

32-bit integer

LongType

int64

INTEGER

64-bit integer

FloatType

float32

FLOAT

Floating-point values

DoubleType

float64

FLOAT

Double-precision floating-point values

DecimalType

object(decimal)

DECIMAL

Fixed-point decimal numbers

TimestampType

datetime64[ns]

TIMESTAMP

Timestamps

DateType

datetime64[ns]

TIMESTAMP

Date values

StringType

object

STRING

Textual data

ArrayType(IntegerType())

object (list), object (np.ndarray)

INTEGER_ARRAY

List of values

ArrayType(LongType())

object (list), object (np.ndarray)

LONG_ARRAY

List of values

ArrayType(FloatType())

object (list), object (np.ndarray)

FLOAT_ARRAY

List of values

ArrayType(DoubleType())

object (list), object (np.ndarray)

DOUBLE_ARRAY

List of values

ArrayType(BinaryType())

object (list), object (np.ndarray) - not supported

BINARY_ARRAY

List of values

ArrayType(DateType())

object (list), object (np.ndarray)

DATE_ARRAY

List of values

ArrayType(TimestampType())

object (list), object (np.ndarray)

TIMESTAMP_ARRAY

List of values

StructType

object - not supported

STRUCT

Structured data

BinaryType

object(bytes) - not supported

BINARY

Binary data

MapType(StringType(), StringType())

object - not supported

STRING_STRING_MAP

Key-value pairs

MapType(StringType(), IntegerType())

object - not supported

STRING_INTEGER_MAP

Key-value pairs

MapType(StringType(), ShortType())

object - not supported

STRING_SHORT_MAP

Key-value pairs

MapType(StringType(), LongType())

object - not supported

STRING_LONG_MAP

Key-value pairs

MapType(StringType(), FloatType())

object - not supported

STRING_FLOAT_MAP

Key-value pairs

MapType(StringType(), DoubleType())

object - not supported

STRING_DOUBLE_MAP

Key-value pairs

MapType(StringType(), TimestampType())

object - not supported

STRING_TIMESTAMP_MAP

Key-value pairs

MapType(StringType(), DateType())

object - not supported

STRING_DATE_MAP

Key-value pairs

For Pandas dataframes, the initial step involves converting the dataframe into a Spark dataframe. This conversion uses the default conversion mechanism provided by Spark, which might result in a less precise mapping between Python and Spark types.

Pandas Type

Spark Type

Notes

bool

BooleanType

int8, uint8, int16, uint16, int32, int, uint32, int64

LongType

float, float16, float32, float64

DoubleType

object (decimal.decimal)

DecimalType

datetime64[ns], datetime64[ns, tz]

TimestampType

Timestamps and Timezones

object (datetime.date)

DateType

object (str), object(np.unicode)

StringType

object (list), object (np.ndarray)

Not supported
